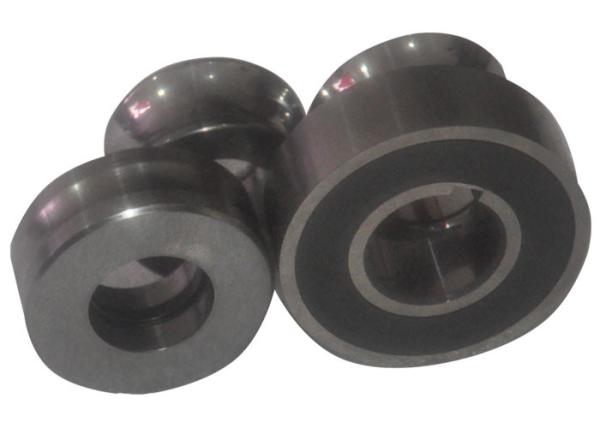

Steel Bonded Titanium Carbide GT35 Guide Roller

Description

As the kneading block of complex surface, processing is extremely difficult,currently the domestic and foreign thread sleeve are made of steel,its

hardness and wear resistance can not meet the needs of users;

Steel-based carbide thread sleeveas of its high hardness,high wear resistance at the same time have a good overall mechanical properties and

by the user's favorite,at present products are exported to the United States, Germany,Italy, Japan,South Korea and other developed

countries.Steel bonded carbide threaded sleeve has the characteristics of transmission and stirring,which is widely used in chemical industry,

electronics,smelting,engineering machinery and other industries.

Specification

GT35 (TIC) chemical composition:

Carbon (C): 0.5-0.8

Chromium (Cr): 2.0

Molybdenum (MO): 2.0

Titanium carbide (Tic): 35%

The rest: Fe

GT35 (TIC) physical properties:

Intensity σ: 1400-1800

Impact toughness: 6J/Cm2

GT35 (TIC) processing performance:

In the annealed state, ordinary lathes can be used, and the milling machine can process complex profiles such as outer circles, planes, threads,

etc., and can be ground after quenching. The quenching deformation is small. High hardness, high wear resistance and high strength can be

easily obtained by quenching treatment.

GT35 (TIC) comprehensive performance:

The hardness HRC (HRA) is between YG15-YG20 (HRC67-73). The strength and toughness are better than that of cemented carbide. The wear

resistance is close to that of cemented carbide. The density (ρ6.5) is lower than that of cemented carbide. . The red hardness is poor (the working

temperature reaches 400° and the hardness HRC starts to decrease), the blank price is 50% lower than that of the cemented carbide, and the

cost performance is high. Can be widely used in molds, cutting tools, steel and other industries.

Applications

GT35 TIC steel bonded carbide guide wheel Used in the production of refractory molds, powder metallurgy molds, cold stamping dies and steel wire guide wheels.
